Technical Sheet

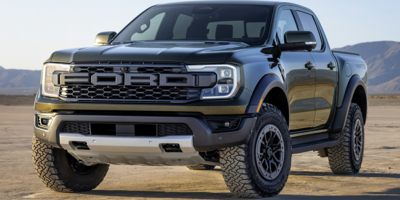

2024 Ford Ranger Raptor 4WD SuperCrew 5' Box

4WD Standard Pickup Trucks
Power   3.0 L/180
Engine   Twin Turbo Premium Unleaded V-6
Transmission   Automatic w/OD
Fuel(L/100KM)   City : 14.9 / Highway : 12.8
Seats   4
  • Emissions
    • G/km Of CO2 Emissions  326
    • Kg/yr of CO2 Emissions @ 20K km/year  N/A
  • Weight Information
    • Standard Weight - Front (lbs)0
    • Standard Weight - Rear (lbs)0
    • Gross Axle Wt Rating - Front (lbs)3130
    • Gross Axle Wt Rating - Rear (lbs)3370
    • Curb Weight - Front (lbs)2554
    • Curb Weight - Rear (lbs)1887
    • Option Weight - Front (lbs)0.00
    • Option Weight - Rear (lbs)0.00
    • Reserve Axle Capacity - Front (lbs)576.00
    • Reserve Axle Capacity - Rear (lbs)1483.00
    • As Spec'd Curb Weight (lbs)4441.00
    • As Spec'd Payload (lbs)2059.00
    • Maximum Payload Capacity (lbs)2349.00
    • Gross Combined Wt Rating (lbs)11465
    • Gross Axle Weight Rating (lbs)6500.00
    • Curb Weight (lbs)4441.00
    • Reserve Axle Capacity (lbs)2059.00
    • Total Option Weight (lbs)0.00
    • Payload Weight Front (lbs)0
    • Payload Weight Rear (lbs)0
    • Gross Vehicle Weight Rating (lbs)6500.00
  • Transmission
    • Drivetrain  Four Wheel Drive
    • Trans Order Code  44T
    • Trans Type  10
    • Trans Description Cont.  Automatic w/OD
    • First Gear Ratio (:1)  4.71
    • Second Gear Ratio (:1)  3.00
    • Third Gear Ratio (:1)  2.15
    • Fourth Gear Ratio (:1)  1.77
    • Fifth Gear Ratio (:1)  1.52
    • Sixth Gear Ratio (:1)  1.27
    • Reverse Ratio (:1)  4.88
    • Clutch Size (in)N/A
    • Trans Power Take Off  N/A
    • Final Drive Axle Ratio (:1)  N/A
    • Transfer Case Model  Electronic
    • Transfer Case Gear Ratio (:1), High  N/A
    • Transfer Case Gear Ratio (:1), Low  N/A
    • Transfer Case Power Take Off  No
    • Seventh Gear Ratio (:1)  1.00
    • Eighth Gear Ratio (:1)  0.85
    • Ninth Gear Ratio (:1)  N/A
    • Tenth Gear Ratio (:1)  N/A
  • Interior Dimensions
    • Passenger Capacity  5
    • Front Head Room (in)41
    • Front Leg Room (in)43.7
    • Front Shoulder Room (in)57.1
    • Front Hip Room (in)55.9
    • Second Head Room (in)38.3
    • Second Leg Room (in)38.3
    • Second Shoulder Room (in)56.7
    • Second Hip Room (in)54.1
  • Mileage
    • EnerGuide Estimate - City (L/100 km)14.9
    • EnerGuide Estimate - Hwy (L/100 km)12.8
    • Cruising Range - City (mi)1211.73
    • Cruising Range - Hwy (mi)1410.53
    • Estimated Battery Range (km)N/A
  • Trailering
    • Dead Weight Hitch - Max Trailer Wt. (lbs)5000
    • Dead Weight Hitch - Max Tongue Wt. (lbs)500
    • Wt Distributing Hitch - Max Trailer Wt. (lbs)5510
    • Wt Distributing Hitch - Max Tongue Wt. (lbs)551
    • Fifth Wheel Hitch - Max Trailer Wt. (lbs)N/A
    • Maximum Trailering Capacity (lbs)5510
    • Fifth Wheel Hitch - Max Tongue Wt. (lbs)N/A
  • Engine
    • Engine Order Code  99R
    • Engine Type  Twin Turbo Premium Unleaded V-6
    • Displacement  3.0 L/180
    • Fuel System  Port/Direct Injection
    • SAE Net Horsepower @ RPM  405 @ 5750
    • SAE Net Torque @ RPM  430 @ 3250
    • Engine Oil Cooler  None
  • Electrical
    • Cold Cranking Amps @ 0° F (Primary)  800
    • Cold Cranking Amps @ 0° F (2nd)  800
    • Maximum Alternator Capacity (amps)  150
    • Cold Cranking Amps @ 0° F (3rd)  N/A
  • Frame
    • Frame Type  N/A
    • Sect Modulus Rails Only (in³)N/A
    • Frame RBM (N/A)N/A
    • Frame Strength (lbs)N/A
    • Frame Thickness (in)N/A
  • Suspension
    • Suspension Type - Front  Short And Long Arm
    • Suspension Type - Rear  Trailing Arm
    • Spring Capacity - Front (lbs)3130
    • Spring Capacity - Rear (lbs)3370
    • Axle Type - Front  Independent
    • Axle Type - Rear  Rigid Axle
    • Axle Capacity - Front (lbs)3130
    • Axle Capacity - Rear (lbs)3370
    • Axle Ratio (:1) - Front  4.27
    • Axle Ratio (:1) - Rear  4.27
    • Shock Absorber Diameter - Front (mm)N/A
    • Shock Absorber Diameter - Rear (mm)N/A
    • Stabilizer Bar Diameter - Front (in)N/A
    • Stabilizer Bar Diameter - Rear (in)N/A
  • Tires
    • Front Tire Size  P285/70SR17
    • Rear Tire Size  P285/70SR17
    • Spare Tire Size  Full-Size
    • Front Tire Capacity (lbs)3263
    • Rear Tire Capacity (lbs)4079
    • Spare Tire Capacity (lbs)N/A
    • Revolutions/Mile @ 45 mph - Front (Rev/Mile)N/A
    • Revolutions/Mile @ 45 mph - Rear (Rev/Mile)N/A
    • Revolutions/Mile @ 45 mph - Spare (Rev/Mile)N/A
  • Wheels
    • Front Wheel Size (in)17 X 8
    • Rear Wheel Size (in)17 X 8
    • Spare Wheel Size (in)Full-Size
    • Front Wheel Material  Aluminum
    • Rear Wheel Material  Aluminum
    • Spare Wheel Material  Steel
  • Steering
    • Steering Type  Rack-Pinion
    • Steering Ratio (:1), On Centre  N/A
    • Steering Ratio (:1), At Lock  N/A
    • Turning Diameter - Curb to Curb (ft)43.3
    • Turning Diameter - Wall to Wall (ft)N/A
  • Brakes
    • Brake Type  4-Wheel Disc
    • Brake ABS System  4-Wheel
    • Brake ABS System (Second Line)  4-Wheel
    • Disc - Front (Yes or )  Yes
    • Disc - Rear (Yes or )  Yes
    • Front Brake Rotor Diam x Thickness (in)12.2
    • Rear Brake Rotor Diam x Thickness (in)12.1
  • Fuel Tank
    • Fuel Tank Capacity, Approx (L)76.8
    • Aux Fuel Tank Capacity, Approx (L)N/A
    • Fuel Tank Location  N/A
    • Aux Fuel Tank Location  N/A
  • Exterior Dimensions
    • Wheelbase (in)128.7
    • Length, Overall w/o rear bumper (in)N/A
    • Length, Overall (in)210.9
    • Width, Max w/o mirrors (in)79
    • Height, Overall (in)75.9
    • Overhang, Front (in)35.8
    • Overhang, Rear w/o bumper (in)N/A
    • Front Bumper to Back of Cab (in)N/A
    • Cab to Axle (in)N/A
    • Cab to End of Frame (in)N/A
    • Ground to Top of Load Floor (in)36.1
    • Ground to Top of Frame (in)N/A
    • Frame Width, Rear (in)N/A
    • Ground Clearance, Front (in)10.7
    • Ground Clearance, Rear (in)10.7
    • Body Length (ft)0.00
    • Cab to Body (in)N/A
  • Cargo Area Dimensions
    • Cargo Box Length @ Floor (in)59.6
    • Cargo Box Width @ Top, Rear (in)62.4
    • Cargo Box Width @ Floor (in)62.4
    • Cargo Box Width @ Wheelhousings (in)48.2
    • Cargo Box (Area) Height (in)20.9
    • Tailgate Width (in)55.4
    • Cargo Volume (ft³)43.5
    • Ext'd Cab Cargo Volume (ft³)N/A
  • Mechanical
    • Engine: 3.0L EcoBoost V6 -inc: auto start-stop technology
    • Transmission: Electronic 10-Speed Automatic
    • 4.27 Locking Axle Ratio
    • GVWR: 3,080 kgs (6,790 lbs)
    • Engine Auto Stop-Start Feature
    • Transmission w/Driver Selectable Mode and SelectShift Sequential Shift Control
    • Electronic Transfer Case
    • Full-Time Four-Wheel Drive
    • Driver Selectable Front Locking Differential
    • Driver Selectable Rear Locking Differential
    • 150 Amp Alternator
    • 80-Amp/Hr 800CCA Maintenance-Free Battery w/Run Down Protection
    • Trailer Wiring Harness
    • Towing Equipment -inc: Brake Controller and Trailer Sway Control
    • 2 Skid Plates
    • 640.0 Kgs Maximum Payload
    • Fox Racing Brand Name Shock Absorbers
    • Front Active w/Driver Control Anti-Roll Bar
    • Electric Power-Assist Speed-Sensing Steering
    • 76.8 L Fuel Tank
    • Dual Stainless Steel Exhaust w/Chrome Tailpipe Finisher
    • Auto Locking Hubs
    • Short And Long Arm Front Suspension w/Coil Springs
    • Solid Axle Rear Suspension w/Leaf Springs
    • 4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist and Hill Hold Control
    • Upfitter Switches
    • Electro-Mechanical Limited Slip Differential
  • Exterior
    • Wheels: 17" Grey-Painted Aluminum
    • Tires: LT285/70R17 All-Terrain
    • Regular Box Style
    • Steel Spare Wheel
    • Full-Size Spare Tire Stored Underbody w/Crankdown
    • Clearcoat Paint
    • Black Front Bumper w/Grey Rub Strip/Fascia Accent and 2 Tow Hooks
    • Black Rear Step Bumper w/Grey Rub Strip/Fascia Accent and 2 Tow Hooks
    • Black Side Windows Trim and Black Front Windshield Trim
    • Body-Coloured Door Handles
    • Grey Wheel Well Trim and Grey Fender Flares
    • Body-Coloured Power Heated Side Mirrors w/Power Folding and Turn Signal Indicator
    • Power Rear Window w/Defroster
    • Deep Tinted Glass
    • Rain Detecting Variable Intermittent Wipers
    • Galvanized Steel/Aluminum Panels
    • Black Grille
    • Front License Plate Bracket
    • Side Steps
    • Tailgate Rear Cargo Access
    • Tailgate/Rear Door Lock Included w/Power Door Locks
    • Cargo Lamp w/High Mount Stop Light
    • Front Fog Lamps
    • LED Brakelights
    • Headlights-Automatic Highbeams
    • Autolamp Auto On/Off Projector Beam Led Low/High Beam Auto High-Beam Daytime Running Lights Preference Setting Headlamps w/Delay-Off
    • Perimeter/Approach Lights
  • Entertainment
    • Radio: B&O Sound System by Bang & Olufsen -inc: AM/FM stereo, HD radio and 10 speakers including subwoofer
    • Radio w/Seek-Scan, Clock, Speed Compensated Volume Control and Steering Wheel Controls
    • Streaming Audio
    • Integrated Roof Antenna
    • SYNC 4A -inc: enhanced voice recognition communications and entertainment system, 10" touchscreen in centre stack w/swipe capability, AppLink, 911 Assist and Apple CarPlay and Android Auto compatibility
    • 2 LCD Monitors In The Front
    • Turn-By-Turn Navigation Directions
    • Real-Time Traffic Display
  • Interior
    • Leather Front Seats w/Leatherette Back Material
    • Driver Seat
    • Passenger Seat
    • Full Folding Bench Front Facing Fold-Up Cushion Leather Rear Seat
    • Manual Tilt/Telescoping Steering Column
    • Gauges -inc: Speedometer, Odometer, Voltmeter, Oil Pressure, Engine Coolant Temp, Inclinometer, Transmission Fluid Temp, Trip Odometer and Trip Computer
    • Power Rear Windows
    • Heated Leather Steering Wheel
    • Front Cupholder
    • Rear Cupholder
    • 2 12V DC Power Outlets
    • Compass
    • Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button
    • Proximity Key For Doors And Push Button Start
    • Garage Door Transmitter
    • Cruise Control w/Steering Wheel Controls
    • Distance Pacing w/Traffic Stop-Go
    • HVAC -inc: Underseat Ducts
    • Voice Activated Dual Zone Front Automatic Air Conditioning
    • Illuminated Locking Glove Box
    • Full Cloth Headliner
    • Interior Trim -inc: Piano Black/Metal-Look Instrument Panel Insert, Cabback Insulator and Chrome Interior Accents
    • Leather Gear Shifter Material
    • Leather Door Trim Insert
    • Leather-Trimmed Front Heated Bucket Seats -inc: 10-way power adjustable driver including power lumbar, 8-way power adjustable passenger including power lumbar, memory driver, flow-through console and floor shift
    • Day-Night Auto-Dimming Rearview Mirror
    • Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination
    • Full Overhead Console w/Storage, 2 12V DC Power Outlets and 2 120V AC Power Outlets
    • Front And Rear Map Lights
    • Fade-To-Off Interior Lighting
    • Full Carpet Floor Covering -inc: Vinyl/Rubber Front And Rear Floor Mats
    • Pickup Cargo Box Lights
    • Smart Device Remote Engine Start
    • Tracker System
    • Connected Navigation Integrated Navigation System w/Voice Activation
    • FOB Controls -inc: Cargo Access and Remote Start
    • Memory Settings Include
    • Instrument Panel Bin, Dashboard Storage, Driver / Passenger And Rear Door Bins and 2nd Row Underseat Storage
    • Delayed Accessory Power
    • Power Door Locks w/Autolock Feature
    • Power 1st Row Windows w/Driver 1-Touch Up/Down
    • Driver Information Centre
    • Redundant Digital Speedometer
    • Trip Computer
    • Outside Temp Gauge
    • Digital Appearance
    • Manual w/Tilt Front Head Restraints and Manual Adjustable Rear Head Restraints
    • Front Centre Armrest and Rear Centre Armrest
    • 1 Seatback Storage Pocket
    • Perimeter Alarm
    • Securilock Anti-Theft Ignition (pats) Immobilizer
    • 2 12V DC Power Outlets and 2 120V AC Power Outlets
  • Safety
    • Electronic Stability Control (ESC) And Roll Stability Control (RSC)
    • ABS And Driveline Traction Control
    • Side Impact Beams
    • Dual Stage Driver And Passenger Seat-Mounted Side Airbags
    • Pre-Collision Assist with Automatic Emergency Braking (AEB)
    • Collision Mitigation-Front
    • BLIS with Trailer Tow Coverage Blind Spot
    • Lane Keeping Alert Lane Keeping Assist
    • Lane Keeping Alert Lane Departure Warning
    • Driver Monitoring-Alert
    • Collision Mitigation-Rear
    • Active Park Assist 2.0 Automated Parking Sensors
    • Aerial View Camera System
    • Tire Specific Low Tire Pressure Warning
    • Dual Stage Driver And Passenger Front Airbags
    • Safety Canopy System Curtain 1st And 2nd Row Airbags
    • Airbag Occupancy Sensor
    • Restricted Driving Mode
    • Rear Child Safety Locks
    • Outboard Front Lap And Shoulder Safety Belts -inc: Rear Centre 3 Point, Height Adjusters and Pretensioners
    • Back-Up Camera
    • Front Camera
    • Left Side Camera
    • Right Side Camera
Exterior colourInterior colour
Oxford White (YZ)Ebony
Velocity Blue Metallic (E7)Ebony
Cactus Grey (NE)Ebony
Iconic Silver Metallic (JS)Ebony
Carbonized Grey Metallic (M7)Ebony
Shadow Black (G1)Ebony
Hot Pepper Red Metallic Tinted Clearcoat (EA)Ebony
Azure Grey Metallic Tri-Coat (G4)Ebony
Shelter Green Metallic (DB)Ebony
* While every reasonable effort is made to ensure the accuracy of this data, we are not responsible for any errors or omissions contained these pages. Please verify any information in question with a representative of Dealer Auto.
